Parametric Revit Families for an Equipment Manufacturer

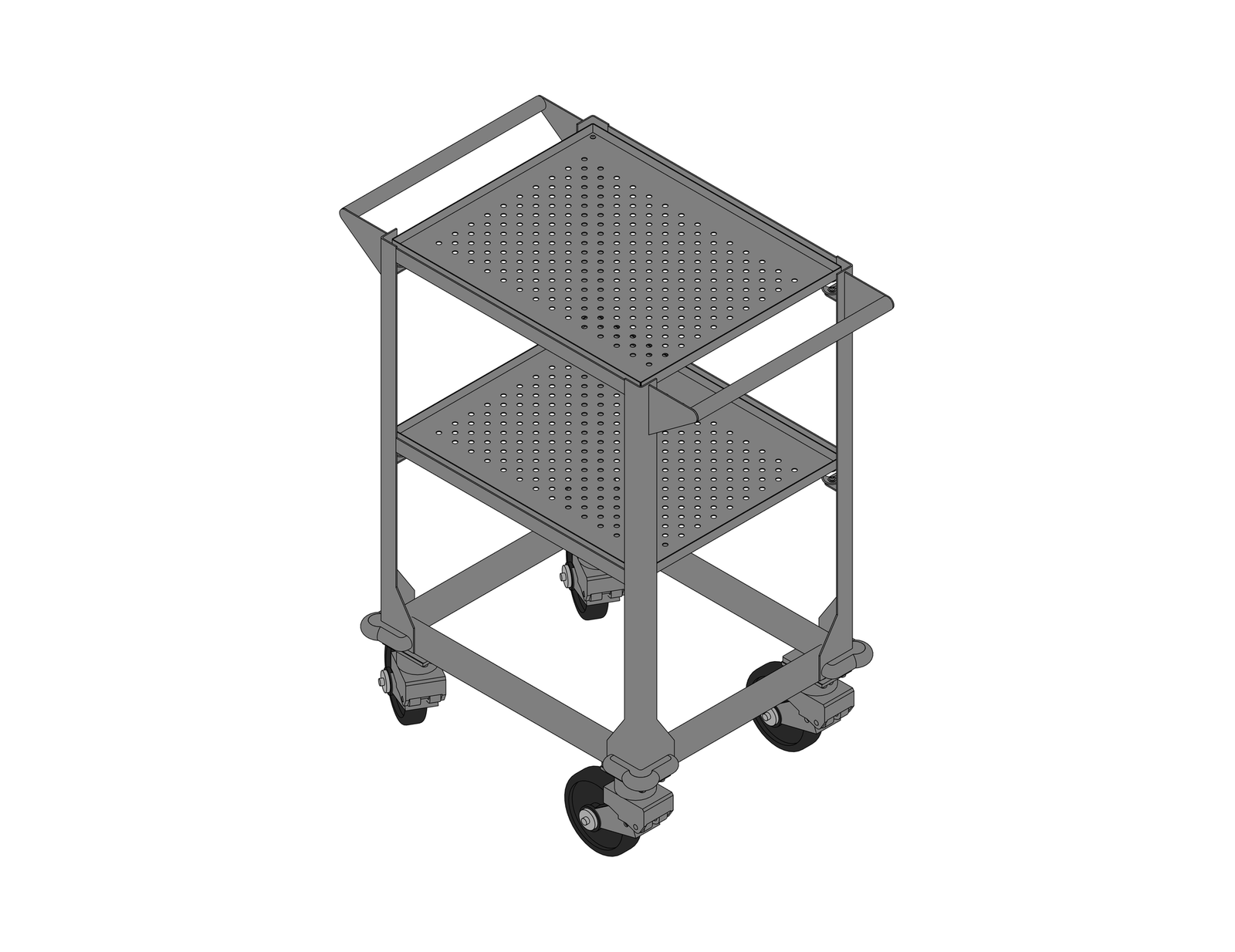

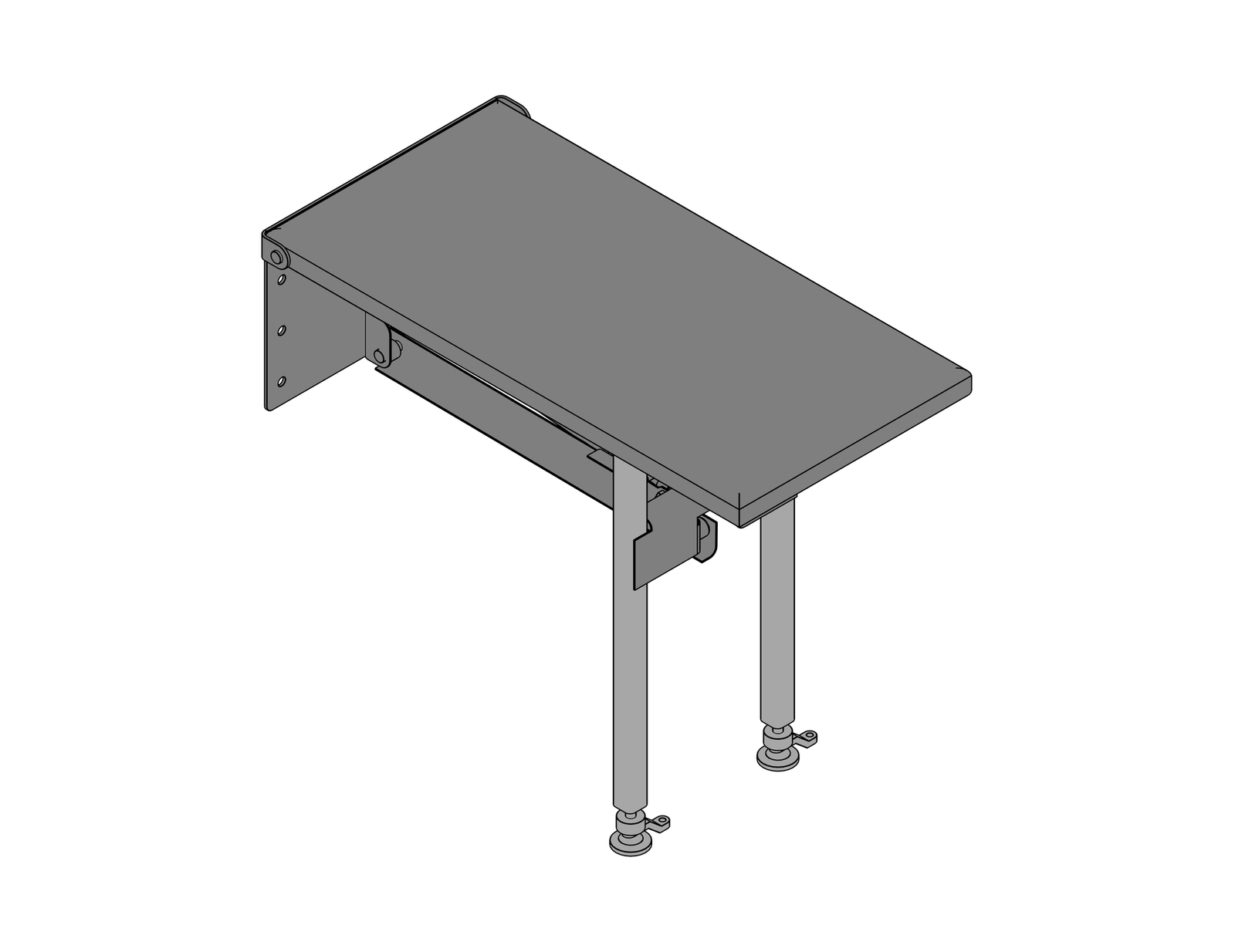

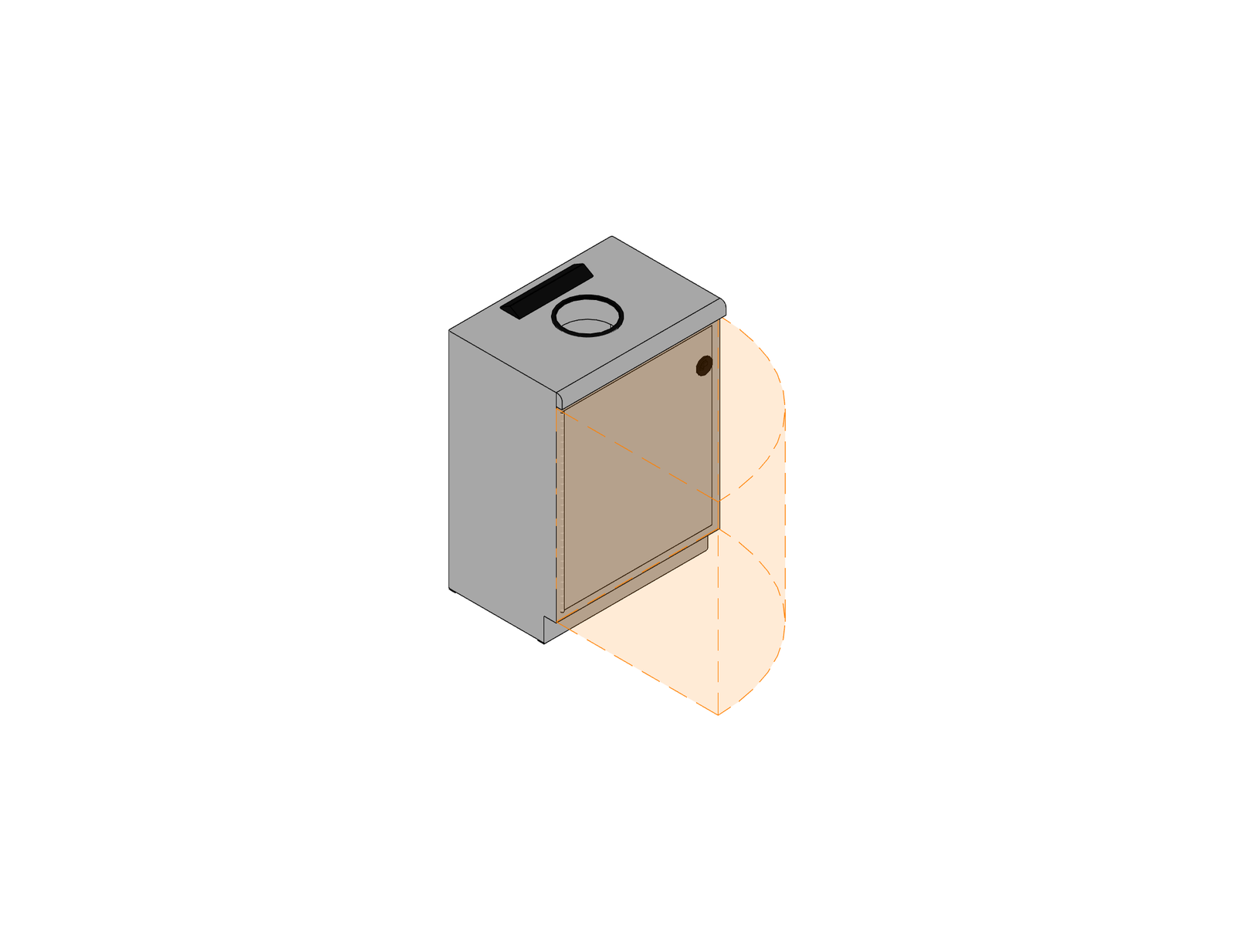

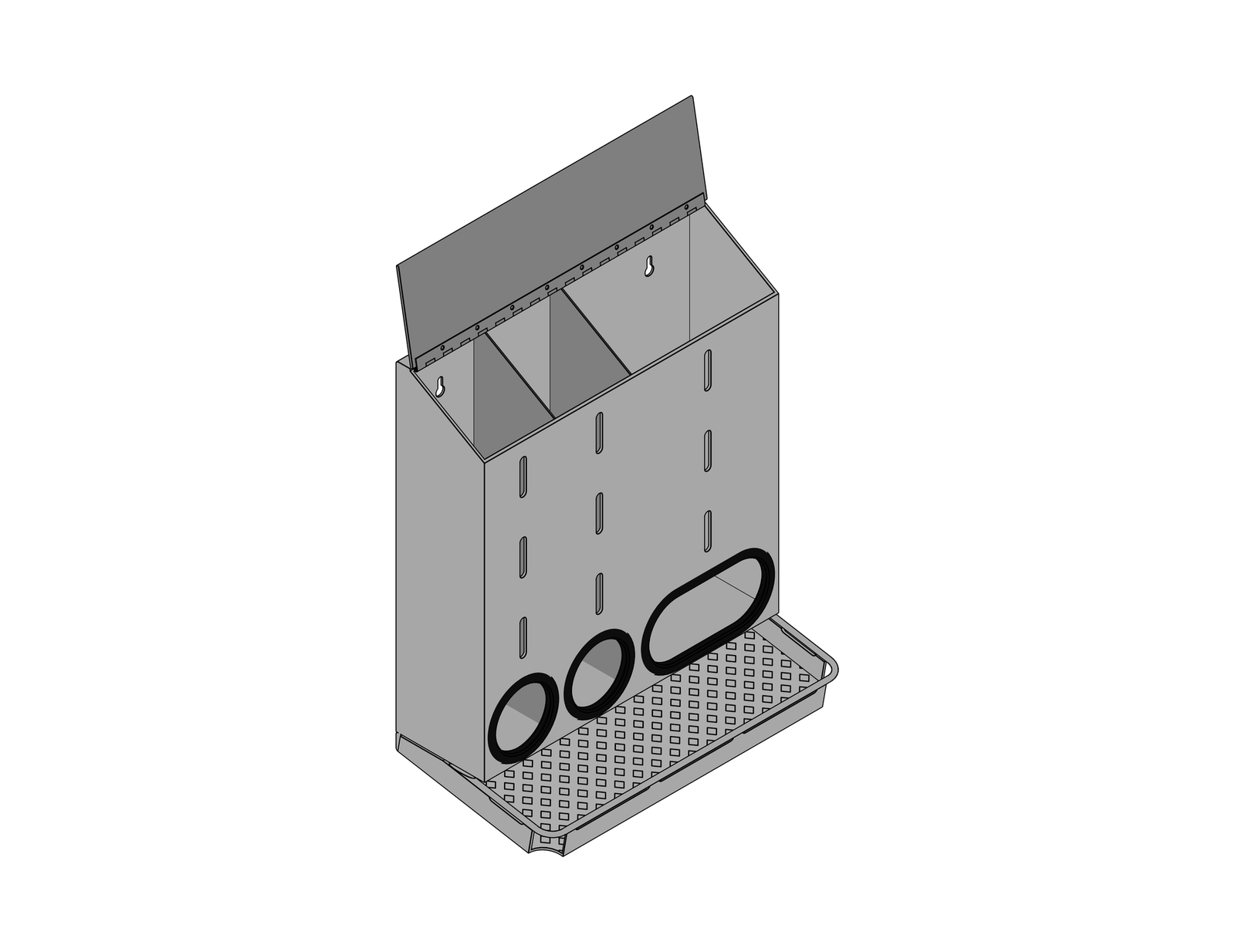

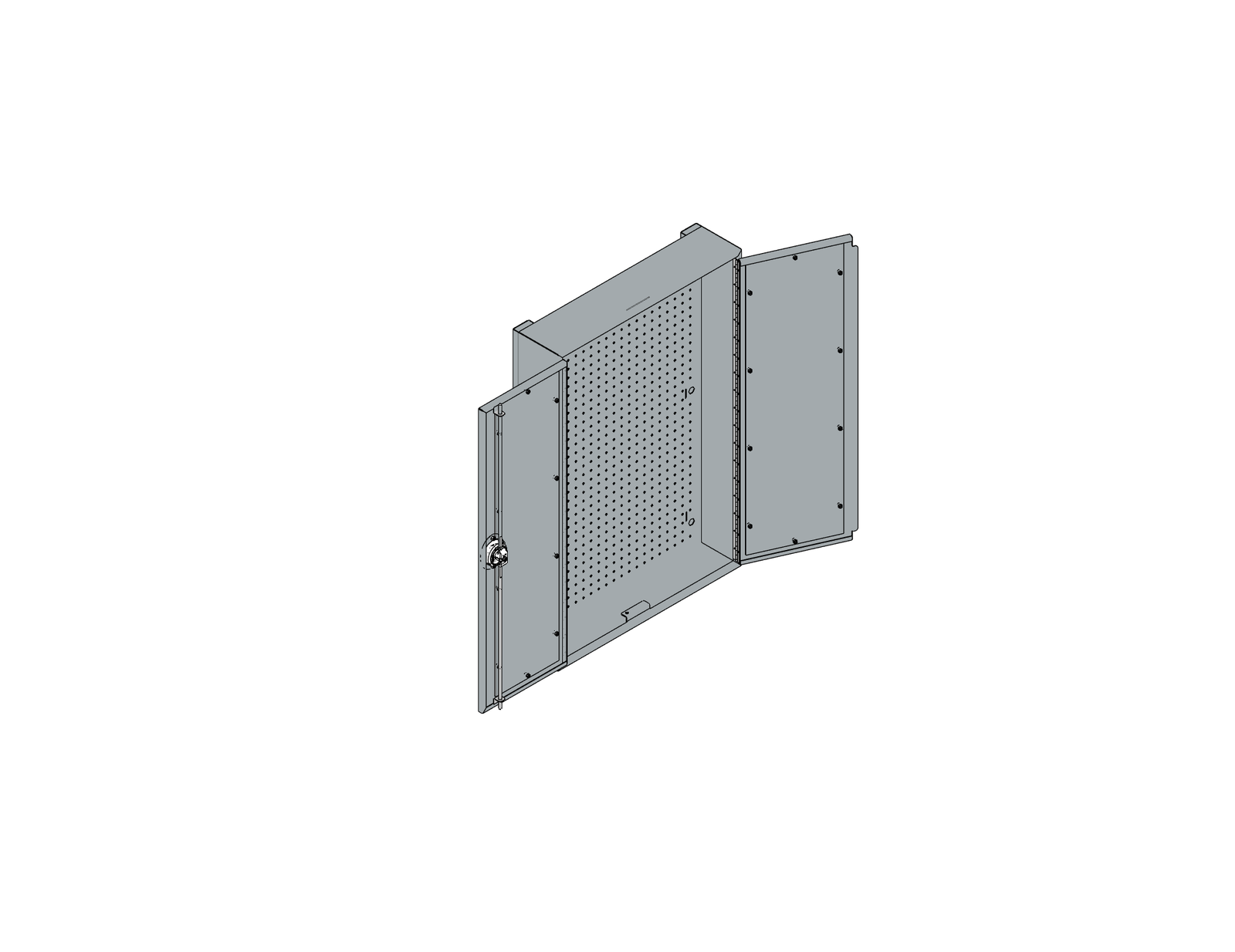

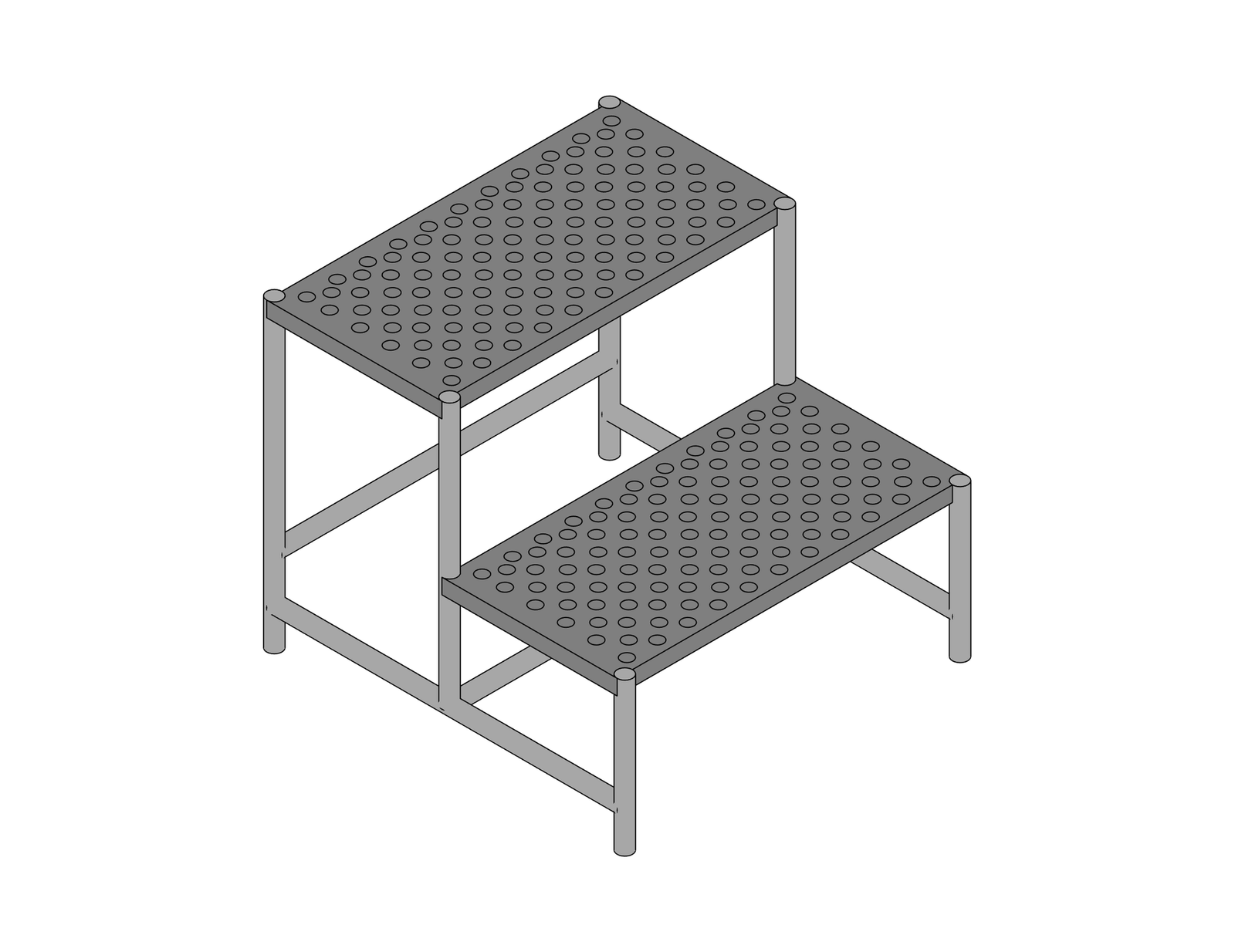

Parametric Revit families for an equipment manufacturer: carts, racks, cabinets, tables, and wall-mounted shelves. Dimensions drive the geometry, so one family covers a range of sizes.
- Location
- USA
The challenge
The client needed its equipment as Revit families that designers can place in a model and trust. The range is wide, and many products come in several sizes. Modelling every size as a separate static object would mean a large library that is slow to build and hard to keep consistent.
Our solution

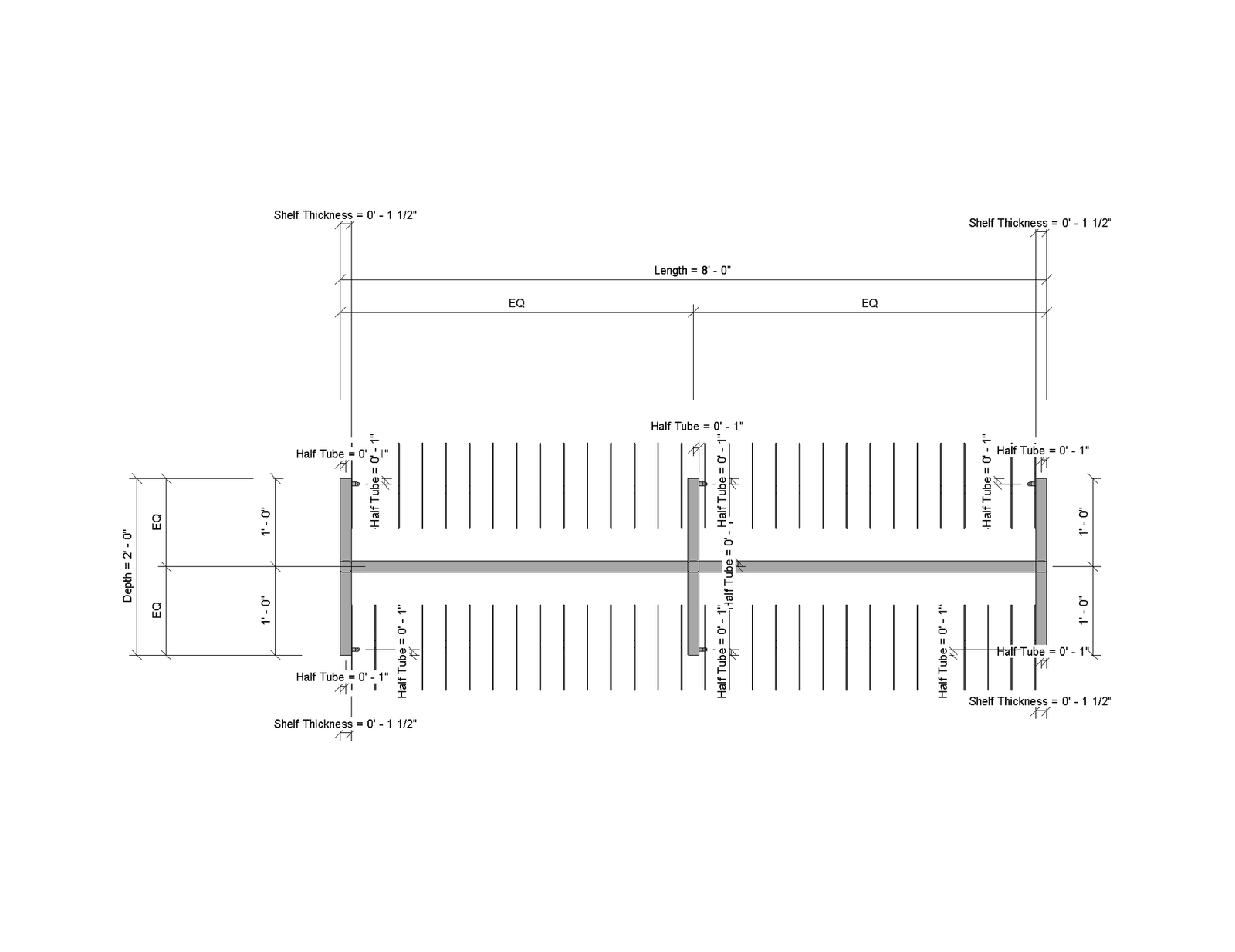

We built the families as parametric. Length, depth and shelf thickness are parameters that drive the geometry, so a size change is a value change, not a new model.
Results
- Parametric families: length, depth and shelf thickness drive the geometry
- One family covers a range of sizes
- Every family tied to the product's item number
